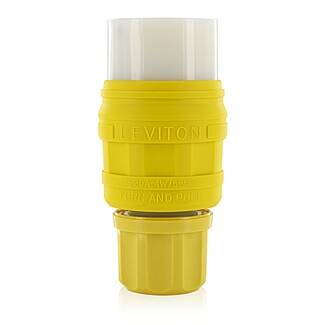

Leviton 76W10-C YL WG LCKCON NONEMA20A250V 10A600V 66W10
$190.50
Leviton #: 76W10-C
SKU: LEVI76W10-C
UPC: 078477525579
SKU: LEVI76W10-C
UPC: 078477525579
| Color: | Yellow |
| Size: | 2.31 Diameter X 4.68 L IN |
| Phase: | 1 |
| Number of Poles: | 4 |
| Mounting: | Cable |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) |
| Connection: | Screw Terminal |
| Material: | TPV |
| Wire Size: | 16-10 |
| Type: | Watertight Connector;Locking |
| Number of Wires: | 5 |
| NEMA Rating: | Non-NEMA |
| Cord Type: | SO;ST;STO;SJ;SJO;SJT;SOO |
| Voltage Rating: | 250 VDC;600 VAC |
| Amperage Rating: | 20;10 AMP |
