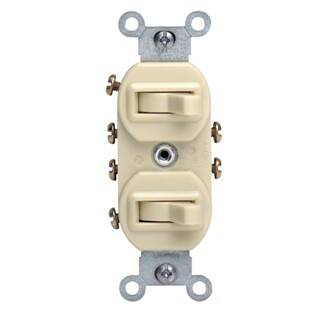

Leviton 5243-W WH COMBI 2SW 3W 15A120/277VAC.
$38.63
Leviton #: 5243-W
SKU: LEVI5243-W
UPC: 078477229606
SKU: LEVI5243-W
UPC: 078477229606
| Material: | Thermoplastic |
| Replacement Parts Material: | Steel (Strap);Thermoplastic (Actuator) |
| Nema Rating: | 5-15R |
| Application: | Commercial |
| Connection: | Side Wired |
| Environmental Conditions: | Flammability (Rated UL 94 V-2) |
| Mounting: | Wallplate |
| Operating Temperature: | -40 to +120 DEG C |
| Amperage Rating: | 15 AMP |
| Contact Rating: | 120/277 VAC;15 AMP |
| Voltage Rating: | 120/277 VAC |
| Number Of Poles: | 3-Way |
| Actuator: | Toggle |
| Size: | 4.20 H x 1.62 W x 16 D IN |
| Special Features: | Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Pe |
| Type: | Duplex Style |
| Color: | White |
| Standard: | UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057);NEMA (WD-1, WD-6);ANSI (C-73);UL 20;CSA Certified (C222.2 No.111 152105) |
