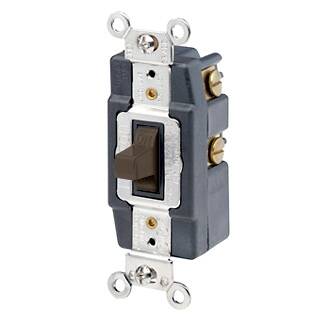

Leviton 1281 15A 120 277V SPDT MAINTAINED CONT BROWN
$97.87
Leviton #: 1281
SKU: LEVI1281
UPC: 078477168004
SKU: LEVI1281
UPC: 078477168004
| Actuator: | Toggle |
| Voltage Rating: | 120/277 VAC |
| Color: | Brown |
| Operating Temperature: | -40 to +65 DEG C |
| Size: | 46 H x 1.37 W x 2.29 D IN |
| Number of Poles: | 1 |
| Type: | Toggle Switch |
| Action: | SPDT |
| Application: | Commercial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Amperage Rating: | 15 AMP |
| Mounting: | Box |
| Connection: | Back Wired;Side Wired |
| Standard: | NEMA (WD-1 and WD-6);ANSI (C-73);NOM (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
