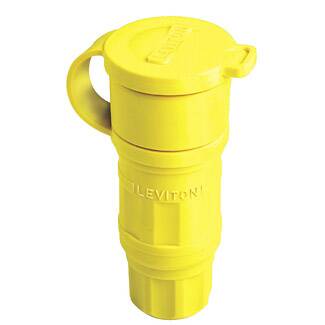

Leviton 29W82 YL WG CONN LK 4P5W3PH L22-30R30A277/480V
$175.10
Leviton #: 29W82
SKU: LEVI29W82
UPC: 078477968833
SKU: LEVI29W82
UPC: 078477968833
| Color: | Yellow |
| Size: | 2.75 Diameter X 5.52 L IN |
| Number of Poles: | 4 |
| Phase: | 3 |
| Amperage Rating: | 30 AMP |
| Mounting: | Cable |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) |
| Connection: | Screw Terminal |
| Material: | TPV |
| Cord Type: | SO;ST;STO;SOO |
| Type: | Watertight Connector;Locking |
| Wire Size: | 12-8 |
| Number of Wires: | 5 |
| Voltage Rating: | 277;480 |
| NEMA Rating: | L22-30R |
