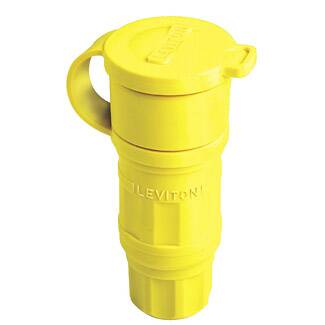

Leviton 29W74 YL WGRD CONN LCK 2PO3WI L14-30R 30A125V
$152.03
Leviton #: 29W74
SKU: LEVI29W74
UPC: 078477968772
SKU: LEVI29W74
UPC: 078477968772
| Color: | Yellow |
| Size: | 2.75 Diameter X 5.52 L IN |
| Number of Poles: | 3 |
| Phase: | 3 |
| Amperage Rating: | 30 AMP |
| Number of Wires: | 4 |
| Mounting: | Cable |
| Application: | Industrial |
| Environmental Conditions: | Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C) |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) |
| Connection: | Screw Terminal |
| Material: | TPV |
| Cord Type: | SO;ST;STO;SOO |
| Type: | Watertight Connector;Locking |
| Wire Size: | 12-8 |
| Voltage Rating: | 125;250 |
| NEMA Rating: | L14-30R |
