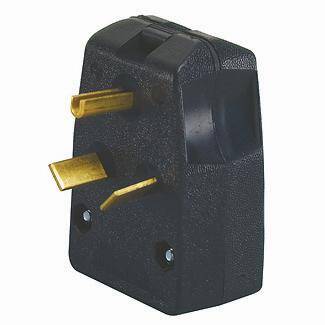

Leviton 287-T EB PLUG AGL 3PO 3WI 10-30P 50A125/250V
$0.00
Leviton #: 287-T
SKU: LEVI287-T
UPC: 078477137024
SKU: LEVI287-T
UPC: 078477137024
| Color: | Black |
| Assembly Screws: | Zinc Plated Steel |
| Blades/contacts Material: | Brass |
| Size: | 3.49 H x 2.56 W x 1.44 D IN |
| Number of Poles: | 3 |
| Voltage Rating: | 250 |
| Number of Wires: | 3 |
| Application: | Commercial |
| Mounting: | Cable |
| Environmental Conditions: | Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) |
| Standard: | NEMA (WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406));UL Listed 498 (File E13393) |
| Type: | Straight Blade;Angle |
| Amperage Rating: | 30/50 AMP |
| Material: | Thermoplastic (Body) |
| Special Features: | Non-Grounding, Tough Thermoplastic Shell for Long Life, Shell and Bottom are Hinged in front for Ease of Assembly, 10-Year Limited Warranty, Made in Please Contact Customer Service |
| Wire Size: | 14-6 AWG (Terminal Accommodation);0.750-1.125 IN (Cord Grip Range) |
| NEMA Rating: | 10-30P/10-50P |
