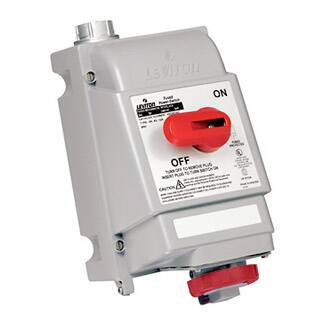

Leviton 530MF7W FUSMECH INTRLCK ENC 4PO5WI3PH30A277/480V
$2,053.38
Leviton #: 530MF7W
SKU: LEVI530MF7W
UPC: 078477127063
SKU: LEVI530MF7W
UPC: 078477127063
| Material: | Valox 357 |
| Replacement Parts Material: | Valox 357 (Cover with Arm);Valox 357 (Locking Ring);Nickel Plated Brass (Cover Eyelet);Chloroprene (Gasket);Valox 357 (Handle);Zinc-Coated Steel (Actuator);Valox 357 (Locking Mechanism);Nylon (Contact Carrier);Brass (Phase and Ground Sleeves);Brass (Groun |
| Number Of Wires: | 5 |
| Color: | Red |
| Horsepower: | 15 HP |
| Number Of Poles: | 4 |
| Amperage Rating: | 30 AMP |
| Actuator: | Cam Lever |
| Application: | Industrial |
| Environmental Conditions: | Flammability (0.6 V-0) |
| Operating Temperature: | -40 to +60 DEG C |
| Size: | 8.78 W x 12.52 H x 8.29 D IN |
| Standard: | UL Listed (231, 1686);UL Listed (508 Non-Fused);UL Listed (98 Fused);CSA Certified (C22.2);CE Marking (Per low voltage directives 73\23\EEC);93\68\EEC;IEC Rating (60309-1 and 60309-2) |
| Contact Rating: | 277/480 V;30 AMP |
| Voltage Rating: | 277/480 VAC |
| Type: | Pin & Sleeve Fused Mechanical Interlock |
