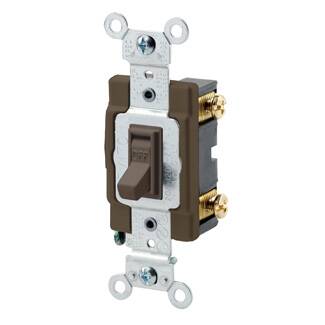

Leviton 54501-2 15A 120 277V SP TGL BRN
$4.59
Leviton #: 54501-2
SKU: LEVI54501-2
UPC: 078477124499
SKU: LEVI54501-2
UPC: 078477124499
| Actuator: | Toggle |
| Operating Temperature: | -40 to +120 DEG C |
| Size: | 46 H x 1.31 W x 1.47 D IN |
| Voltage Rating: | 120/277 VAC |
| Color: | Brown |
| Number of Poles: | 1 |
| Type: | Toggle Switch |
| Application: | Commercial |
| Connection: | Side Wired |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Standard: | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20) |
| Amperage Rating: | 15 AMP |
| Mounting: | Box |
| Action: | SP |
