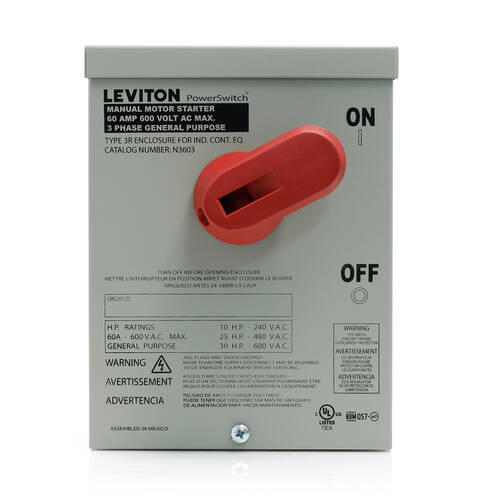

Leviton N3603 60A 600V 3P 3R MTR STRT SW
$221.49
Leviton #: N3603
SKU: LEVIN3603
UPC: 078477101865
SKU: LEVIN3603
UPC: 078477101865
| Actuator: | Toggle |
| Operating Temperature: | -40 to +65 DEG C |
| Voltage Rating: | 600 VAC |
| Size: | 8.1 H x 6.3 W x 4.3 D IN |
| Number of Poles: | 3 |
| Application: | Commercial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Connection: | Back Wired;Side Wired |
| Standard: | NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969) |
| Amperage Rating: | 60 AMP |
| Enclosure: | Powder Coated Steel |
| Action: | TP |
| Type: | Enclosure with Three-Pole AC Motor Starter Switch |
