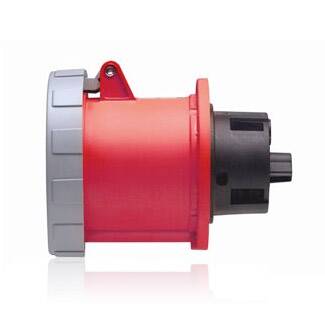

Leviton 560R7W REC WTRTIGHT P/S 4PO5WI 3PH 60A277/480V
$0.00
Leviton #: 560R7W
SKU: LEVI560R7W
UPC: 078477837726
SKU: LEVI560R7W
UPC: 078477837726
| Color: | Red |
| Wire Size: | 5 |
| Corrosion Resistance: | Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min |
| Current Interrupting: | Certified for Current Interrupting at Full Rated Current |
| Gasket Material: | Chloroprene |
| Insulation Resistance: | 5 @ 500 V for 1 min Ohms |
| Interrupt Rating: | IP67 Watertight |
| Moisture Resistance: | Per UL 1682 Immersed for 24 Hours in 5cm of 25C Water |
| Replacement Parts Material: | Stainless Steel (Sleeve Spring), Nickel Plated Brass (Cover Eyelet), Brass (Phase and Ground Sleeves), Performance Grade Stainless Steel (Arm Spring), Valox 357 (Cover with Arm), Valox 357 (Mounting Flange) |
| Temperature Rise: | Max 30DEG C (After 50 Cycles OL at 150 PCT Rated Current) |
| Application: | Industrial |
| Number Of Poles: | 4 |
| Environmental Conditions: | Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) |
| Mounting: | Flange Mount |
| Standard: | UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 |
| Type: | Pin & Sleeve Watertight Receptacle |
| Action: | FP |
| Voltage Rating: | 277/480 VAC |
| Amperage Rating: | 60 AMP |
| Size: | 4.37 H x 5.39 D IN |
