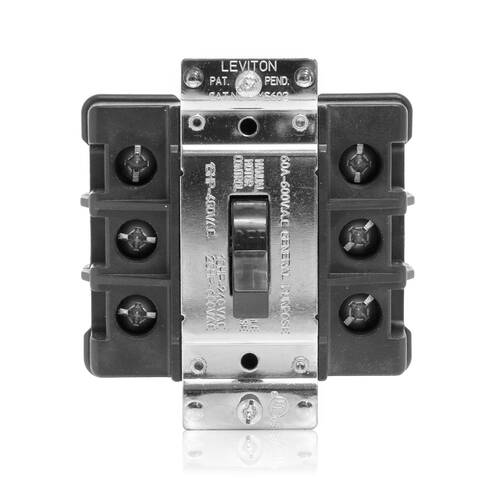

Leviton MS603-FW 60A 3P FW MSS
$152.80
Leviton #: MS603-FW
SKU: LEVIMS603-FW
UPC: 078477093627
SKU: LEVIMS603-FW
UPC: 078477093627
| Actuator: | Toggle |
| Operating Temperature: | -40 to +65 DEG C |
| Voltage Rating: | 600 VAC |
| Size: | 3.75 H x 3.43 W x 1.70 D IN |
| Number of Poles: | 3 |
| Application: | Commercial |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Standard: | NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969) |
| Type: | Standard Toggle; Double-Pole AC Motor Starter Switch |
| Amperage Rating: | 60 AMP |
| Action: | TPST |
| Connection: | Front Wired |
