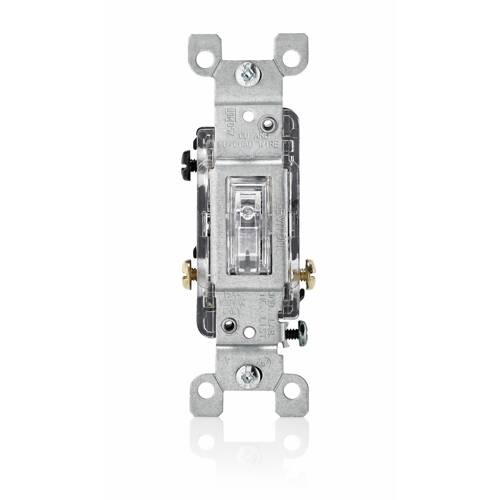

Leviton 1463-LHC RESI ILLUM 3W TOG SW
$0.00
Leviton #: 1463-LHC
SKU: LEVI1463-LHC
UPC: 078477827949
SKU: LEVI1463-LHC
UPC: 078477827949
| Operating Temperature: | -40 to +65 DEG C |
| Actuator: | Cam |
| Voltage Rating: | 120 VAC |
| Color: | Clear |
| Size: | 4.20 H x 1.31 W x 15 D IN |
| Application: | Commercial |
| Connection: | Side Wired |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Amperage Rating: | 15 AMP |
| Contact Rating: | 1/2 (120V);2 (240V) |
| Special Features: | Grounding, Terminal Screws Accept up to No. 12 AWG Copper or Copper-Clad Wire, Large Head, Hardened Triple-Drive Combination Screws (Standard, Phillips, Robertson) for Fast Wiring Installation, Impact-Resistant, Durable Thermoplastic Toggle and Frame, 2 Y |
| Standard: | NOM Certified (057);CSA Certified (File LR-3413);UL Listed (File E-7458) |
| Insulation: | Thermoplastic |
| Mounting: | Wallplate |
| Type: | 3-Way AC Quiet Switch |
