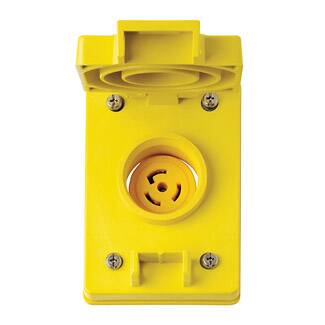

Leviton 69W47 YL WGRD REC SGL 2PO3WI L5-30R CVR30A125V
$141.76
Leviton #: 69W47
SKU: LEVI69W47
UPC: 078477056653
SKU: LEVI69W47
UPC: 078477056653
| Color: | Yellow |
| Size: | 4.63 H x 3.13 W IN |
| Voltage Rating: | 125 |
| Number of Wires: | 3 |
| Amperage Rating: | 30 AMP |
| Mounting: | Box |
| Number of Poles: | 2 |
| Dielectric Strength: | 2000 (Min.) |
| Application: | Industrial |
| Temperature Rating: | -40 to +60 DEG C |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Connection: | Back Wired |
| Wire Size: | 14-8 |
| Environmental Conditions: | Flammability (Rated V-0 per UL94) |
| NEMA Rating: | L5-30R |
| Type: | Single Locking Receptacle with Watertight Cover |
