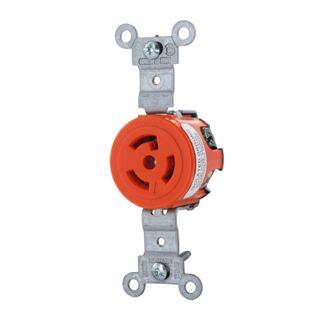

Leviton 4760-IG #2CD/LCK FLSH RCPT/IG
$51.23
Leviton #: 4760-IG
SKU: LEVI4760-IG
UPC: 078477797075
SKU: LEVI4760-IG
UPC: 078477797075
| Color: | Orange |
| Size: | 46 H IN |
| Amperage Rating: | 15 AMP |
| Number of Wires: | 3 |
| Mounting: | Box |
| Number of Poles: | 2 |
| Application: | Commercial |
| Dielectric Strength: | 2000 (Min.) |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Material: | Nylon |
| Wire Size: | 18-10 |
| Temperature Rating: | -40 to +60 DEG C |
| Connection: | Side Wired |
| NEMA Rating: | L7-15R |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399) |
| Voltage Rating: | 277 |
| Type: | Locking Single Outlet |
