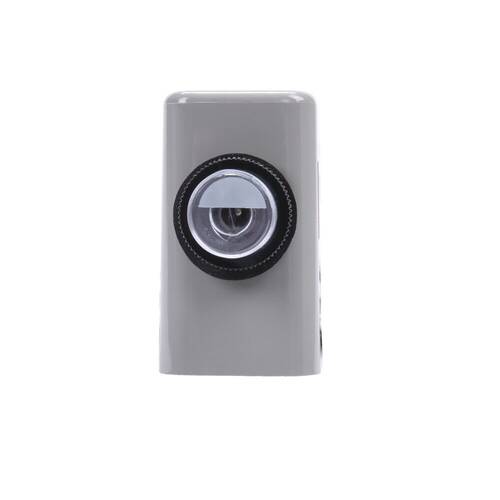

Intermatic EK4035S NIGHTFOX Button Electronic Photocontrol, 480 V
$33.15
Intermatic #: EK4035S
SKU: INTEEK4035S
UPC: 078275152397
SKU: INTEEK4035S
UPC: 078275152397
| Ballast Power Rating: | 1800 VA |
| Tungsten Watts: | 1000 WTT |
| Connection: | Color Coded Lead |
| Frequency Rating: | 50/60 HZ |
| Mounting: | Button Fixed Mount |
| Operating Temperature: | -40 to +158 DEG F -40 to +70 DEG C |
| Supply Voltage: | 480 VAC |
| Operating Cycles: | 10000 |
| Sensor: | Solid State Photo Sensor (Silicon IR Filtered) |
| Source: | Electronic Control |
| Application: | parking lot lighting; landscape lighting; exterior lighting; street lighting; pedestrian pathway |
| Enclosure: | Polycarbonate |
| Sensitivity: | Instant On, 2 Seconds to 5 Seconds Off |
| Size: | 1.31 WIDTH x 1.25 DEPTH x 2.25 HIGH IN; 3.35 WIDTH x 3.18 DEPTH x 5.72 HEIGHT CM |
| Special Features: | Non-drift silicon light sensor with IR filter;DC relay with zero-crossing circuitry for extended life;Conformal coated PCB;15-year design life;Exceeds 10,000 ON/OFF switching cycles;Fail ON mode;Ideal for single or multi fixture HID and LED installations; |
| Standard: | CA Title 20; Ansi C136.24 |
