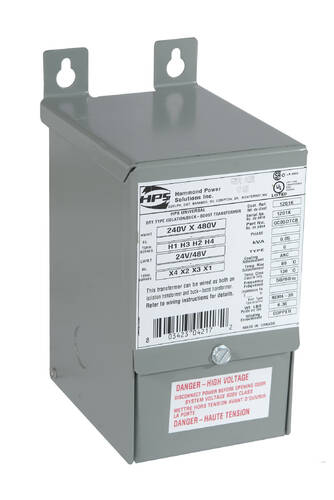

Hammond Power Solutions 1C5ESCF POTTED BUCK BOOST 1PH 1.5KVA 120/240-16/32 CU
$422.69
Hammond Power Solutions #: 1C5ESCF
SKU: HAMM1C5ESCF
UPC: 803423033804
SKU: HAMM1C5ESCF
UPC: 803423033804
| Frequency Rating: | 50/60 HZ |
| Mounting: | Wall mount |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| Enclosure: | NQ4-N3R - Indoor or Outdoor |
| Height: | 11.75 in |
| Standard: | CSA, UL, Class 1 Div II |
| Application: | General purpose for raising supply voltage caused by line drop or equipment demand on the distribution system, or lower voltage caused by increased system voltages due to supply line adjustments |
| Length: | 6.25 in |
| Special Features: | Encapsulated transformers can be used to buck and boost voltage in single and three phase applications where supply voltages are frequently above or below nominal. These transformers can also be used in low voltage transformer application. |
| Type: | Transformer > Dry Type > Buck-Boost |
| Width: | 7.06 in |
