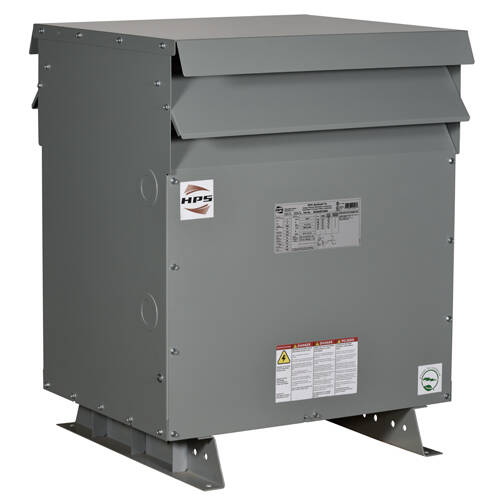

Hammond Power Solutions E3A0093JJM D16/NRC19 DIT 3PH 93kVA460D-460Y/266V CU
$9,203.04
Hammond Power Solutions #: E3A0093JJM
SKU: HAMME3A0093JJM
UPC: 803423144654
SKU: HAMME3A0093JJM
UPC: 803423144654
| Frequency Rating: | 60 HZ |
| Application: | Variable Speed Drives. |
| Efficiency: | NRCan 2018 Energy Efficient |
| Insulation Class: | 220 Deg C Class |
| Mounting: | Floor or Wall Mount |
| NEMA Frame Size: | Type 3R |
| Number Of Phases: | 3 |
| Primary Voltage: | 460 V |
| Special Features: | Meets NRCan 2018 efficiencies and designed to meet rugged demands of both AC and DC variable speed drives and alos to provide the required voltage change. Comes standard in an outdoor enclosure and a thermal warning switch. |
| Standard: | CSA, UL |
| Enclosure: | DH3-N3R - Indoor or Outdoor |
| Height: | 36 IN |
| Length: | 27 IN |
| KVA Rating: | 93 kVA |
| Secondary Voltage: | 460Y/266 V |
