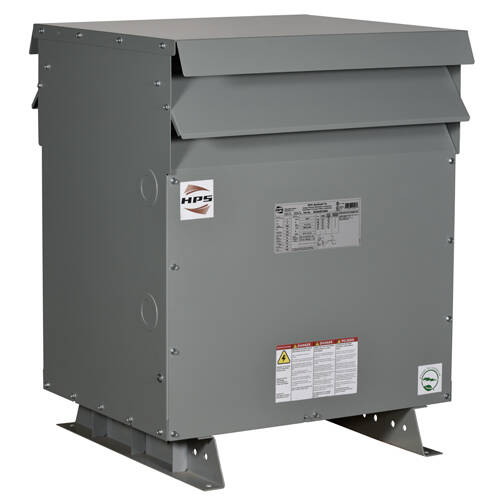

Hammond Power Solutions E3A0093KK D16/NRC19 DIT 3PH 93kVA480D-480Y/277 VAL
$7,119.42
Hammond Power Solutions #: E3A0093KK
SKU: HAMME3A0093KK
UPC: 803423143800
SKU: HAMME3A0093KK
UPC: 803423143800
| Frequency Rating: | 60 HZ |
| Application: | Variable Speed Drives. |
| Efficiency: | NRCan 2018 Energy Efficient |
| Insulation Class: | 220 Deg C Class |
| Mounting: | Floor or Wall Mount |
| NEMA Frame Size: | Type 3R |
| Number Of Phases: | 3 |
| Special Features: | Meets NRCan 2018 efficiencies and designed to meet rugged demands of both AC and DC variable speed drives and alos to provide the required voltage change. Comes standard in an outdoor enclosure and a thermal warning switch. |
| Standard: | CSA, UL |
| Enclosure: | DH3-N3R - Indoor or Outdoor |
| Height: | 36 IN |
| Length: | 27 IN |
| KVA Rating: | 93 kVA |
| Primary Voltage: | 480 V |
| Secondary Voltage: | 480Y/277 V |
