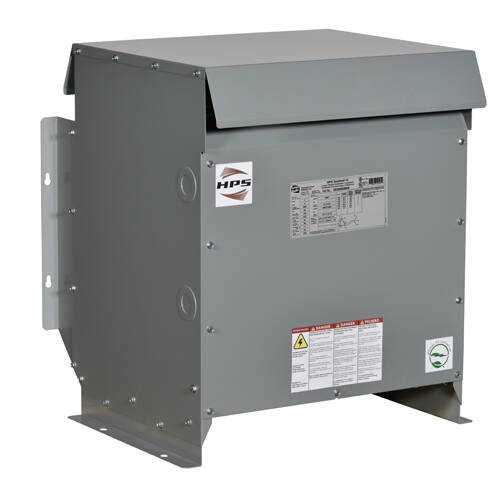

Hammond Power Solutions E3A0034JJ D16/NRC19 DIT 3PH 34kVA460D-460Y/266V AL
$3,690.12
Hammond Power Solutions #: E3A0034JJ
SKU: HAMME3A0034JJ
UPC: 803423143411
SKU: HAMME3A0034JJ
UPC: 803423143411
| Frequency Rating: | 60 HZ |
| Application: | Variable Speed Drives. |
| Efficiency: | NRCan 2018 Energy Efficient |
| Insulation Class: | 220 Deg C Class |
| Mounting: | Floor or Wall Mount |
| NEMA Frame Size: | Type 3R |
| Number Of Phases: | 3 |
| Primary Voltage: | 460 V |
| Special Features: | Meets NRCan 2018 efficiencies and designed to meet rugged demands of both AC and DC variable speed drives and alos to provide the required voltage change. Comes standard in an outdoor enclosure and a thermal warning switch. |
| Standard: | CSA, UL |
| Enclosure: | DH2-N3R - Indoor or Outdoor |
| Height: | 28.8 IN |
| Length: | 23.8 IN |
| KVA Rating: | 34 kVA |
| Secondary Voltage: | 460Y/266 V |
