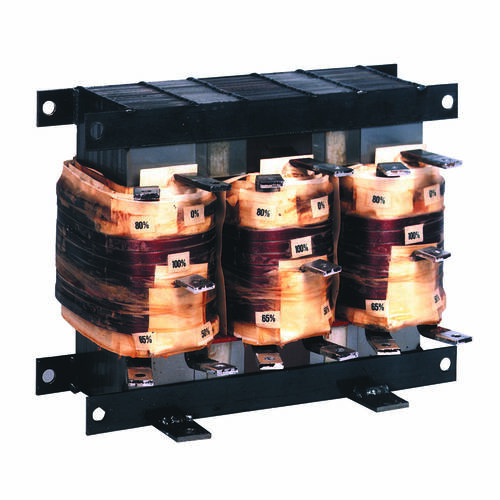

Hammond Power Solutions 009C1. MSA 3A-series 3 Coil 480V 100 HP
$2,940.56
Hammond Power Solutions #: 009C1.
SKU: HAMM009C1.
UPC: 803423000677
SKU: HAMM009C1.
UPC: 803423000677
| Application: | Motor loads such as pumps, compressors, conveyers, and fans. |
| Connection: | Copper Pads |
| Control: | Supplied by others |
| Cooling: | Convection Air Cooled |
| Enclosure: | Core and Coil |
| Frequency Rating: | 60 Hz |
| Insulation: | 220 Deg C Class |
| Phase: | 3 |
| Power Factor: | Supplied by others |
| Standard: | CSA, UL |
| Wattage: | 100 HP |
| Input Voltage: | 480 V |
| Special Features: | 3 Coil MSAT's are integrated with controls for reduced votlage starts, optional thermal switches are available. |
| Type: | Autotransformer > Motor Starting > 3 Coil |
