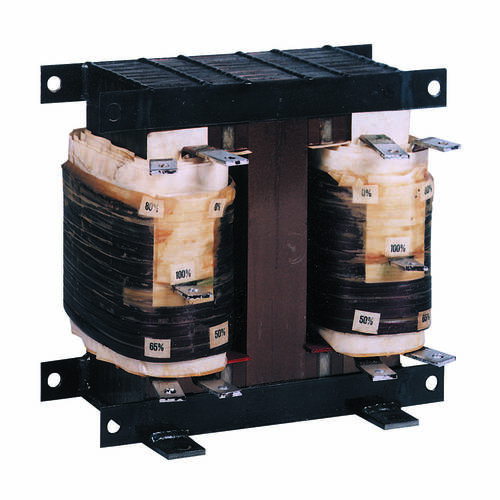

Hammond Power Solutions 909D.2 MSA 2A-series 2 Coil 600V 20/25 HP
$2,404.78
Hammond Power Solutions #: 909D.2
SKU: HAMM909D.2
UPC: 803423000332
SKU: HAMM909D.2
UPC: 803423000332
| Application: | Motor loads such as pumps, compressors, conveyers, and fans. |
| Connection: | Copper Pads |
| Control: | Supplied by others |
| Cooling: | Convection Air Cooled |
| Enclosure: | Core and Coil |
| Frequency Rating: | 60 Hz |
| Insulation: | 220 Deg C Class |
| Phase: | 3 |
| Power Factor: | Supplied by others |
| Special Features: | 2 Coil MSAT's are integrated with controls for reduced votlage starts, optional thermal switches are available. |
| Standard: | CSA, UL |
| Type: | Autotransformer > Motor Starting > 2 Coil |
| Height: | 10.25 in |
| Input Voltage: | 600 V |
| Length: | 11.5 in |
