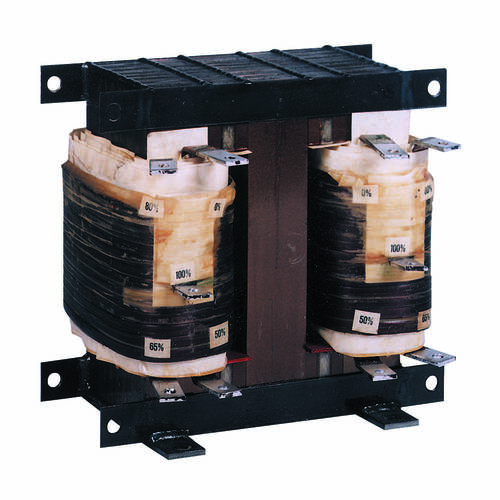

Hammond Power Solutions 909C1.5 MSA 2A-series 2 Coil 480V 125/150 HP
$3,850.14
Hammond Power Solutions #: 909C1.5
SKU: HAMM909C1.5
UPC: 803423000226
SKU: HAMM909C1.5
UPC: 803423000226
| Application: | Motor loads such as pumps, compressors, conveyers, and fans. |
| Connection: | Copper Pads |
| Control: | Supplied by others |
| Cooling: | Convection Air Cooled |
| Enclosure: | Core and Coil |
| Frequency Rating: | 60 Hz |
| Insulation: | 220 Deg C Class |
| Phase: | 3 |
| Power Factor: | Supplied by others |
| Special Features: | 2 Coil MSAT's are integrated with controls for reduced votlage starts, optional thermal switches are available. |
| Standard: | CSA, UL |
| Type: | Autotransformer > Motor Starting > 2 Coil |
| Height: | 12.75 in |
| Length: | 14.5 in |
| Input Voltage: | 480 V |
