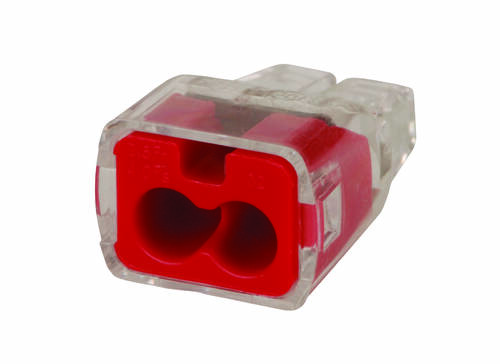

Ideal Industries 30-1632 PUSH-IN 20-12 AWG 2-PORT,5K BX
$0.03
Ideal Industries #: 30-1632
SKU: IDEA30-1632
UPC: 783250673872
SKU: IDEA30-1632
UPC: 783250673872
| Color: | Red |
| Application: | For Grounding And Bonding Applications |
| Special Features: | Features: No-Twist Connection Reduces Repetitive Motion Fatigue; Low Insertion Force For Fast And Easy Connections; Compact Size Makes Installation Easy; Clear Shell Gives Visual Verification Of Connection; UL Listed To 486C And CSA Certified To C22.2 #18 |
| Standard: | CSA C22.2 #188, 486C/467 UL Listed, RoHS |
| Temperature Rating: | 105 DEG C Shell Rated |
| Type: | Push-In |
| Voltage Rating: | 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures |
| Wire Size: | #12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded) |
| Wire Type: | Solid, Stranded, Stranded (Tin Bonded) |
| Connection: | 2 Ports |
| Size: | 0.780 IN Length X 0.520 IN Width X 0.380 IN Height |
