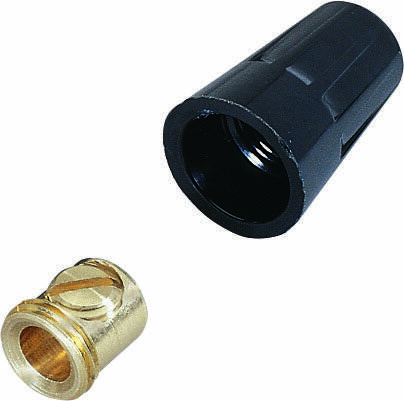

Ideal Industries 30-222 SET SCREW 22 CONN(BOX OF 100)
$0.02
Ideal Industries #: 30-222
SKU: IDEA30-222
UPC: 783250302222
SKU: IDEA30-222
UPC: 783250302222
| Voltage Rating: | 600 V |
| Color: | Brass Connector, Black Shell |
| Material: | Brass, Flame-retardant polypropylene shell |
| Number Of Conductors: | 1 to 6 |
| Standard: | CSA C22.2, 486C UL Listed |
| Temperature Rating: | 150 , 302 DEG C/F |
| Type: | Set-Screw |
| Special Features: | Features: Eliminates Need For Restripping Wire Each Time Connection Is Disturbed; Solid Brass Sleeves ;Set-Screw Easily And Securely Applies Maximum Compression To Conductors To Ensure A Vibration-Resistant Splice; Permits Fast Visual Inspection Of Splice |
| Size: | 11/16 IN Width X 1-1/64 IN Height |
| Wire Size: | 20 - 10 AWG |
