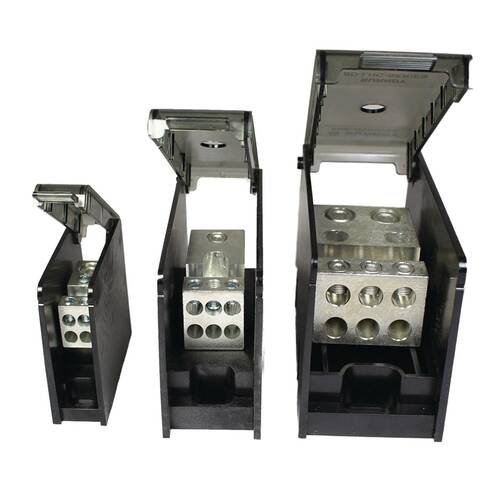

Burndy BDBMHC222/01 Versipole,2/0-14-1P-2/0-14 SEC
$59.40
Burndy #: BDBMHC222/01
SKU: BURNBDBMHC222/01
UPC: 781810645901
SKU: BURNBDBMHC222/01
UPC: 781810645901
| Product Type: | Mechanical |
| Product Name: | BDBMHC222/01, 1-Pole Power Distribution Block |
| Dimension - Height inch: | 3.25 in |
| Dimension - Width inch: | 1.85 in |
| Description - Long: | Power Distribution Blocks.1 Pole 600V Al9Cu, RUN:(2) #14-2/0 AWG TAP:(2) #14-2/0 AWG |
| Insulation: | Y |
| Material: | Aluminum |
| Temperature Rating: | 194 |
| Amperage Rating: | 350 A |
| Application: | Suitable for use with aluminum or copper conductors providing maximum versatility |
| Special Features: | Single or dual run connections allow the user to minimize the number of connections required, Adders and End Barriers available separately for all 3 sizes providing capability to create as many poles as required |
| Type: | BDBMH |
