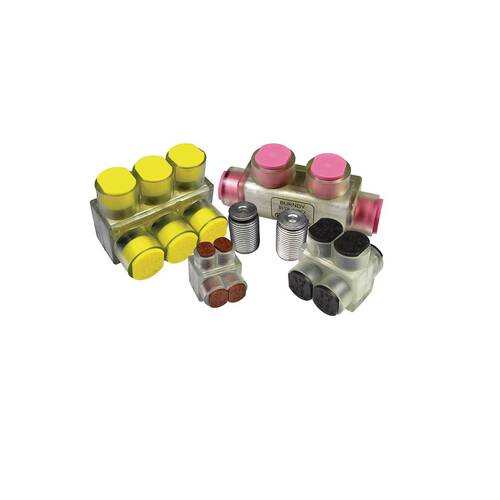

Burndy BIT250FX 250-10, 2-SIDED, TAP, FLEX
$55.50
Burndy #: BIT250FX
SKU: BURNBIT250FX
UPC: 621945439214
SKU: BURNBIT250FX
UPC: 621945439214
| Color Code: | Yellow |
| Insulation Type: | Plastisol |
| Product Name: | BIT250FX, Single Sided Flex Rated Two Conductor Clear Insulated Multi-Tap Connector |
| Description - Short: | Aluminum UNITAP, Tap - Same Side Entry, #10-250 Class B & C, #10-3/0 Class G,H,I,K, DLO, 2 PORT |
| Installation Torque Recommended in-lb: | 10-1 Str- 180 in-lb, 1/0-250 Str- 300 in-lb |
| Standard: | UL 486A-486B |
| Material: | Aluminum |
| Conductor Size: | 10 AWG-250 KCMIL |
| Special Features: | Features: Clear Plastisol covered AL6061-T6 aluminum body, Saves time, lowers installation costs, eliminates taping, Oxide inhibitor pre-installed, Inhibits moisture and contaminants from entering the contact area |
| Application: | Clear Insulated Multiple Tap Connectors |
| Temperature Rating: | 135 C |
| Type: | BIT, UNITAP |
