Burndy BDBLHC225003 500-4-3P-500-4 SEC
$287.07
Burndy #: BDBLHC225003
SKU: BURNBDBLHC225003
UPC: 781810645987
SKU: BURNBDBLHC225003
UPC: 781810645987
| Product Type: | Mechanical |

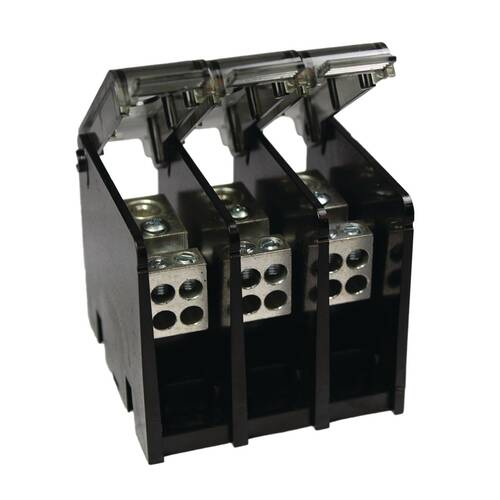

| Product Name: | BDBLHC225003, 3-Pole Power Distribution Block |
| Dimension - Height inch: | 3.55 |
| Dimension - Width inch: | 5.70 in |
| Description - Long: | Terminal block covers, AWG 4 - 500 kcmil (Run), AWG 4 - 500 kcmil (Tap), Power Distribution Block,Voltage:600V. |
| Application: | Industrial control feeder, HVAC system and wire ways |
| Insulation: | Y |
| Material: | Aluminum |
| Special Features: | Provided capability to create as many poles as required, Up to 30 tap conductor accommodated |
| Type: | BDB |
| Amperage Rating: | 760 A |
| Temperature Rating: | 194 F |
