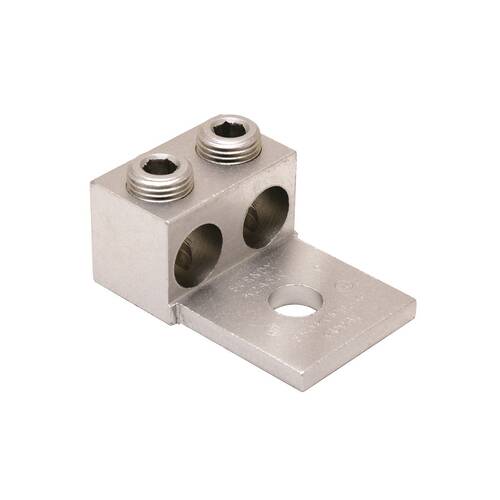

Burndy K2A31U TWO:4STR-350 DUAL RATED
$31.50
Burndy #: K2A31U
SKU: BURNK2A31U
UPC: 781810600153
SKU: BURNK2A31U
UPC: 781810600153
| Minimum Pack Quantity: | 1 |
| Material - Hardware: | Aluminum |
| EU RoHS Indicator: | No |
| Plating Type: | Tin plated |
| Product Name: | K2A31U, AL Universal Terminal, 2 Conductor, 1-Hole, #6 AWG Str-350 kcmil, 1/2" Stud, 2 Screws, Al/Cu Rated |
| Standard: | UL 486A-486B |
| Type: | Bolted Lugs & Terminals |
| Material: | Aluminum |
| Temperature Rating: | 194 |
| Application: | For Aluminum And Copper Conductors |
| Number of Conductors: | 2 |
| Number of Conductors/Ports (Main/Primary): | 2 |
| Special Features: | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension D: 1.69 IN, Dimension N: 0.88 IN, Dimension T: 0.25 IN, Installation Torque: 275 IN-LB, Len |
