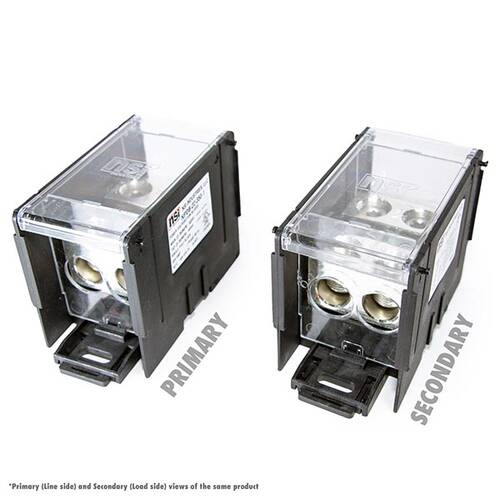

NSi Industries NPDB-22-500-1 NPDB LINE 2X500-4 - LOAD 2X500-4
$90.08
NSi Industries #: NPDB-22-500-1
SKU: NSIINPDB-22-500-1
UPC: 662381367679
SKU: NSIINPDB-22-500-1
UPC: 662381367679
Warranty: | 1 Year |
Number Of Terminals: | 4 |
Voltage Rating: | 600 V |
Application: | NSI |
Color: | Black Base-Clear Panels and Covers |
Mounting: | Slotted Holes in Base, 35mm DIN Rail w/Locking Feature |
Special Features: | 100kA Short Circuit Current Rated (SCCR), Din Rail Mount with Locking Mechanism to lock/release block on Din Rail, Multi Pole Ganging, Finger Safe Lexan 500R Polycarbonate Panels & Covers. |
Type: | Single Primary (Line), Single Secondary (Load) |
Material: | 6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers |
Size: | Lequals5.800 - Wequals2.750 - Hequals3.750 IN |
Standard: | UL1953 and UL1059 Listed, cULus |
Amperage Rating: | 760A |
Wire Size: | (2) 500 MCM-4 AWG(LINE) - (2) 500 MCM-4 AWG(LOAD) |
