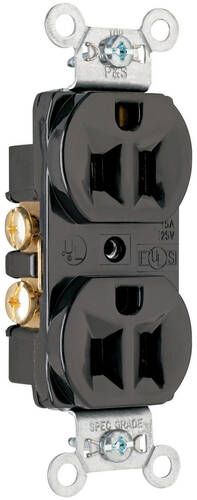

Legrand-Pass & Seymour CRB5262BK 15A 125V CONSTRUCT DUPLEX RECEPT BK
$3.56
Legrand-Pass & Seymour #: CRB5262BK
SKU: LEGRCRB5262BK
UPC: 785007210187
SKU: LEGRCRB5262BK
UPC: 785007210187
| Color: | Black |
| Indoor/Outdoor: | Indoor |
| Number of Receptacles: | 2.0 |
| Warranty Type: | 1-Year Limited Warranty |
| Voltage: | 125.0 V |
| Amperage: | 15.0 A |
| Country code for ECCN: | MX |
| Outlet Type: | Indoor, Commercial |
| Product Height: | 2.635 in |
| Product Width: | 1.322 in |
| Size: | 1.322 L x .780 W x 3.281 H In |
| Product Depth: | 0.78 in |
| Voltage Rating: | 125 |
| Number of Wires: | 3 |
| Material: | Nylon |
| NEMA Rating: | 5-15R |
| Amperage Rating: | 15 |
| Type: | Outlet |
| Mounting: | Wall |
| Number of Poles: | Double Pole |
| Wire Size: | 14 - 10 AWG |
| Connection: | Back and side wire |
| Dielectric Strength: | Withstands 2000V minimum |
| Environmental Conditions: | Flammability: UL94 V2 |
| Special Features: | Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fa |
| Standard: | FEDSPEC, CULUS, UL498, CSA C22.2 No. 42 |
| Application: | Construction |
