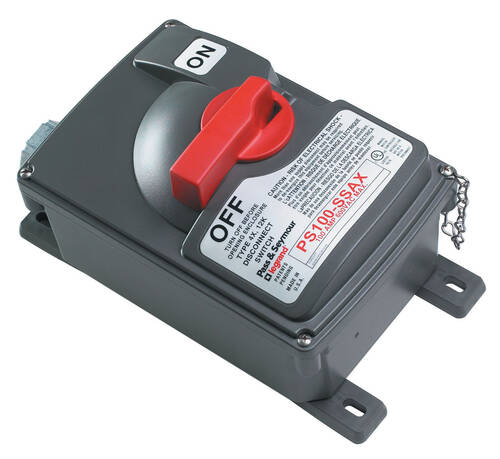

Legrand-Pass & Seymour PS100SS 100A 600VAC NON FUSIBLE SAFETY SWIT
$473.40
Legrand-Pass & Seymour #: PS100SS
SKU: LEGRPS100SS
UPC: 785007150209
SKU: LEGRPS100SS
UPC: 785007150209
| Actuator: | Switch Handle |
| Operating Temperature: | Maximum continuous: +60C; Minimum continuous: -50C without impact Deg |
| Color: | Gray |
| Application Sector: | Industrial |
| Voltage: | 600.0 V |
| Amperage: | 100.0 A |
| Product Height: | 12.38 in |
| Product Depth: | 6.31 in |
| Product Width: | 9.13 in |
| Size: | 7.19 L x 6.31 W x 12.38 H In |
| Voltage Rating: | 600 |
| Application: | Industrial |
| Connection: | Hard Wired |
| Enclosure: | NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability |
| Environmental Conditions: | Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable |
| Mounting: | External adjustable feet with five (5) positions. Can be mounted directly to channel or strut (no washers required). |
| Operating Cycles: | Mechanical: 15,000 Cycles; Electrical: 10,000 Cycles |
| Standard: | CULUS, UL, CSA |
| Frequency Rating, Maximum: | 60.000000000000000 Hz |
| Amperage Rating: | 100 |
| Contact Configuration: | (Optional) 1 N.O. & 1 N.C. |
| Contact Rating: | (Optional) 10A @ 600VAC |
| Action: | Motor Disconnect Switch |
| Special Features: | Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Nonconductive, watertight, corrosion-, heat-, and impact-resistant Valox enclosure ensures NEMA 4X and 12 ratings and withstands th |
| Type: | Non-Fusible Safety Switch |
