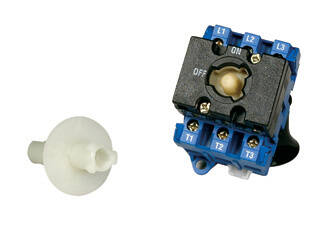

Legrand-Pass & Seymour RS60 60A REPLACEMENT SWITCH
$219.65
Legrand-Pass & Seymour #: RS60
SKU: LEGRRS60
UPC: 785007147230
SKU: LEGRRS60
UPC: 785007147230
| Operating Temperature: | Maximum continuous: +60C; Minimum continuous: -50C without impact Deg |
| Application Sector: | Industrial |
| Voltage: | 600.0 V |
| Amperage: | 60.0 A |
| Size: | Consult the Factory |
| Color: | Blue |
| Product Height: | 11.6 in |
| Product Depth: | 7.1 in |
| Product Width: | 7.3 in |
| Voltage Rating: | 600 |
| Application: | Industrial |
| Enclosure: | NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability |
| Environmental Conditions: | Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable |
| Mounting: | External adjustable feet with five (5) positions. Can be mounted directly to channel or strut (no washers required). |
| Operating Cycles: | Mechanical: 15,000 Cycles; Electrical: 10,000 Cycles |
| Amperage Rating: | 60 |
| Contact Configuration: | (Optional) 1 N.O. & 1 N.C. |
| Contact Rating: | (Optional) 10A @ 600VAC |
| Type: | Non-Fusible Safety Switch Replacement Switch |
| Material: | Valox 357 |
| Special Features: | Replacement switch for 60 Amp Non-Fusible Safety Switch. |
| Standard: | UL, CUL, UL, CSA |
