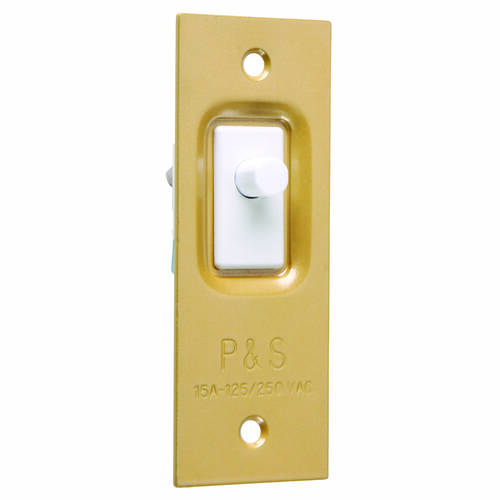

Legrand-Pass & Seymour 1205A REPLACEMENT DOOR SW + METAL PLATE +LEAD
$0.00
Legrand-Pass & Seymour #: 1205A
SKU: LEGR1205A
UPC: 785007120493
SKU: LEGR1205A
UPC: 785007120493
| Actuator: | Push button |
| Operating Temperature: | Maximum continuous +60C, minimum -30C |
| Voltage Rating: | 120/250 VAC |
| Number of Poles: | 1 |
| Action: | SP |
| Amperage Rating: | 15 |
| Mounting: | Wall |
| Standard: | UL LISTED |
| Application: | Residential/Commercial |
| Contact Configuration: | N-O |
| Contact Rating: | 15 Amp, 120/250 VAC |
| Environmental Conditions: | Flammability: UL94 V2 |
| Operating Cycles: | 30000 |
| Wattage: | Electrical power is expressed in Amps and Volts. |
| Special Features: | Light ON, door OPEN. Interiors only, with leads, plunger and face plate. Equipped with wire leads. Only 14 oz. pressure actuates switch. Back box cold rolled steel. Plate is steel with bronze coating. |
| Type: | Interiors Only for Pressure Sensitive Door & Canopy Switch |
