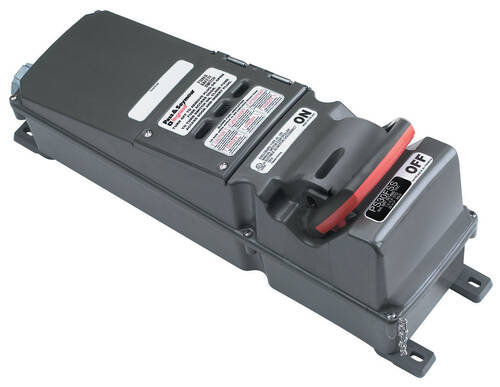

Legrand-Pass & Seymour PS30FSS 30A 600VAC FUSIBLE SAFETY SWITCH
$1,072.30
Legrand-Pass & Seymour #: PS30FSS
SKU: LEGRPS30FSS
UPC: 785007101010
SKU: LEGRPS30FSS
UPC: 785007101010
| Actuator: | Switch Handle |
| Operating Temperature: | Maximum continuous: +60C; Minimum continuous: -50C without impact Deg |
| Size: | 9.13 L x 10.09 W x 22.59 H In |
| Color: | Gray |
| Application Sector: | Industrial |
| Voltage: | 600.0 V |
| Amperage: | 30.0 A |
| Voltage Rating: | 600 |
| Action: | Motor Disconnect Switch with Blown Fuse Indicator |
| Application: | Industrial |
| Connection: | Hard Wired |
| Contact Configuration: | 1 N.O. & 1 N.C. |
| Contact Rating: | 10A @ 600VAC |
| Enclosure: | NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability |
| Environmental Conditions: | Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable |
| Mounting: | External adjustable feet with five (5) positions. Can be mounted directly to channel or strut (no washers required). |
| Operating Cycles: | Mechanical: 15,000 Cycles; Electrical: 10,000 Cycles |
| Standard: | CULUS, UL, CSA |
| Type: | Fusible Safety Switch |
| Frequency Rating, Minimum: | 60.000000000000000 Hz |
| Special Features: | Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Corrosion-resistant, stainless steel captive screws speeds installation, minimize risk of lost parts, and withstand abuse. Captive, |
| Amperage Rating: | 30 |
