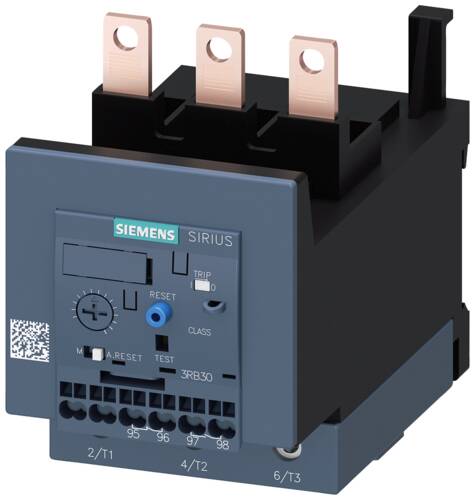

Siemens Industry 3RB30461XD0 ELECTRONIC OVERLOAD RELAY. 32...115 A

$564.48
View Full Details
Siemens Industry #: 3RB30461XD0
SKU: SIEM3RB30461XD0
UPC: 804766407840
Ambient temperature / during transport / minimum: -40 C
Relative humidity / during operation / maximum: 95 %
Number of poles / for main current circuit: 3
Ambient temperature / during transport / maximum: 80 C
Operating current / of auxiliary contacts / at DC-13 / at 24 V: 2 A
Operating current / of auxiliary contacts / at AC-15 / at 24 V: 4 A
Operating current / of auxiliary contacts / at AC-15 / at 230 V: 3 A
Relative humidity / during operation / minimum: 10 %
Operating current / of auxiliary contacts / at AC-15 / at 120 V: 4 A
Operating current / of auxiliary contacts / at AC-15 / at 125 V: 4 A
Operating current / of auxiliary contacts / at AC-15 / at 110 V: 4 A
AWG number / as coded connectable conductor cross section / for main contacts / maximum: 1
Surge voltage resistance / rated value: 8 V
AWG number / as coded connectable conductor cross section / for main contacts / minimum: 10
Operating voltage / at AC-3 / Rated value / maximum: 1000 V
Trip Class: CLASS10E
Depth: 124 mm
Width: 70 mm
Height: 106 mm
