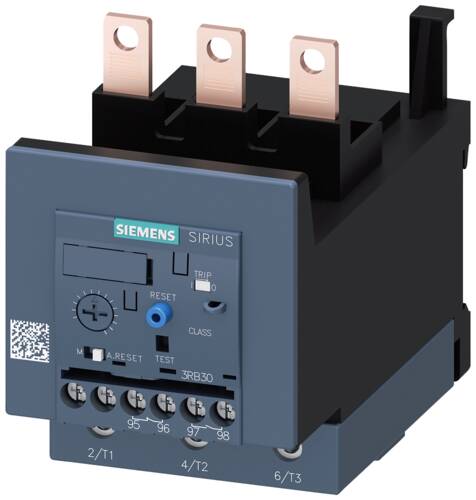

Siemens Industry 3RB30461XB0 ELECTRONIC OVERLOAD RELAY. 32...115 A
$564.48
Siemens Industry #: 3RB30461XB0
SKU: SIEM3RB30461XB0
UPC: 804766407833
SKU: SIEM3RB30461XB0
UPC: 804766407833
| Operating current / of auxiliary contacts / at DC-13 / at 60 V: | 0.55 A |
| Ambient temperature / during storage / minimum: | -40 C |
| Ambient temperature / during transport / minimum: | -40 C |
| Installation altitude / at height above sea level / maximum: | 2000 m |
| Ambient temperature / during operation / maximum: | 60 C |
| Relative humidity / during operation / maximum: | 95 % |
| Ambient temperature / during storage / maximum: | 80 C |
| Ambient temperature / during transport / maximum: | 80 C |
| Ambient temperature / during operation / minimum: | -25 C |
| Relative humidity / during operation / minimum: | 10 % |
| Product function / removable terminal for auxiliary and control circuit: | Yes |
| Power loss [W] / total / typical: | 4.6 W |
| Insulation voltage / with degree of pollution 3 / rated value: | 1000 V |
| Surge voltage resistance / rated value: | 8 V |
| Operating current / at AC-3 / at 400 V / Rated value: | 115.00 A |
| Trip Class: | CLASS10E |
| Depth: | 124 mm |
| Width: | 70 mm |
| Height: | 106 mm |
